FB 60-60 (Horizontal)
FB 60-60 Horizontal is a horizontal composite fire barrier for ceiling membrane applications in commercial and industrial buildings. It provides 60 minutes integrity and 60 minutes insulation, and is constructed from treated woven glass fabrics, needled glass fibres and aluminium foils.
Testing Standards
- BS 476: Part 22:1987
Applications
- FB 60-60 Horizontal can be used as a ceiling membrane in commercial and industrial buildings requiring horizontal compartmentation.
- Browse Finnbarr's Installation Guides for a range of fixing details that use this fire barrier.
Enquire about this product
Need technical details, pricing, or help choosing the right product?
Our team can advise on specifications, availability, and suitable application.
-
-
Email Finnbarr at sales@fbbarriers.co.uk -
Fire Performance
Fire resistance performance data for FB 60-60 (Horizontal):
| Fire Integrity | 60 minutes |
|---|---|
| Fire Insulation | 60 minutes |
Physical Specifications
Physical characteristics and material properties of FB 60-60 (Horizontal):
| Material | Treated woven glass fabrics, needled glass fibres, aluminium foils |
|---|---|
| Dimensions | 6m x 130cm x 18mm |
| Fibre Diameter | > 6 microns (non respirable) |
| Nominal Weight | 4900 g/m² |
Fire Performance Standards
FB 60-60 (Horizontal) has been tested to the following fire performance standards :
- BS 476: Part 22:1987
Product Fire Test Reports
| Report Reference | Testing Lab |
|---|---|
| 548656/R | Warrington Fire |
Want to see these Test Reports?
Copies of the fire test report(s) listed above are available on request.
Simply quote the report reference, product name (FB 60-60 (Horizontal)) or SKU (FB-BAR-60-60-H) and contact our team using one of the following methods:
- Telephone: 074 821 51002
- Email: sales@fbbarriers.co.uk
- Contact Form
We'll be pleased to send the requested fire test reports directly to you for your independent review.
Learn why Finnbarr makes their fire test reports directly available to customers in our Principle of Transparent Assurance .
Packaging Details
The table below outlines how FB 60-60 (Horizontal) is supplied and packaged:

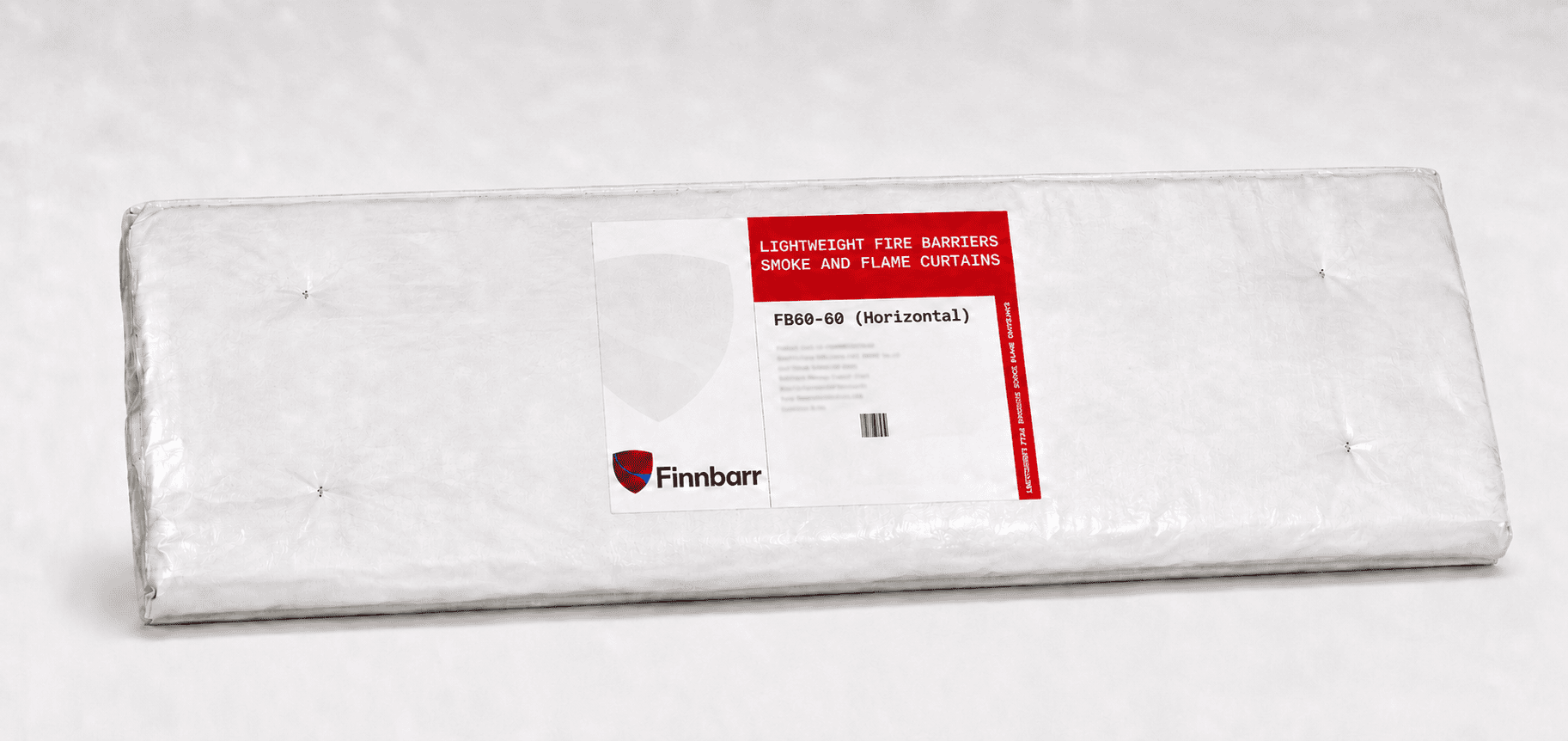

| Packaging | Concertina folded and wrapped in thick polythene sheet |
|---|---|
| Area | 7.80 m² |
| Total Weight | 40 kg |
